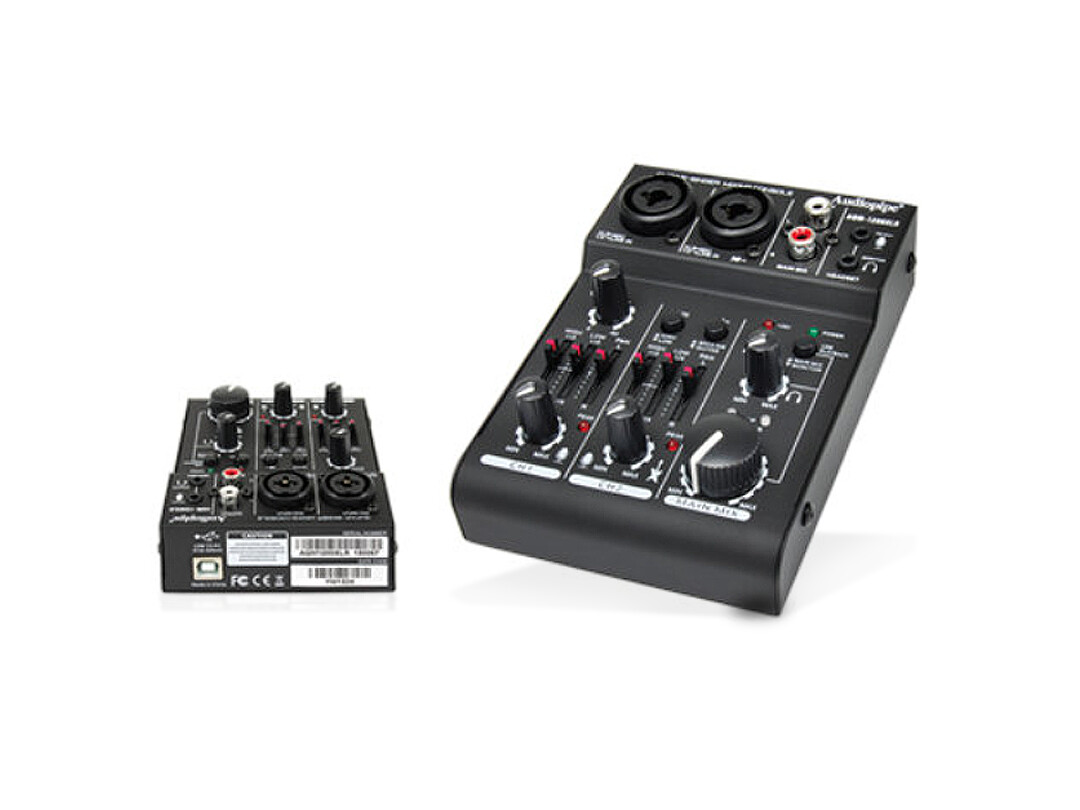

Audiopipe | AQM-1200XLR 2-Channel Mic-Line Mixer-USB Audio Interface

SKU 10509

$15,000.00

Buy In-Store Only

In stock

Product Details

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

This device is used for connecting and recording audio equipment with a computer. featuring sensitivity/impedance, frequency range, THD, S/N ratio, equalizer, headphone impedance, USB interface, phantom power, power supply, dimensions, weight, and suitable operating system for data transfer via USB interface.

The sensitivity/impedance values for the CH1 and CH2 XLR inputs are 2mV/1.8KΩ at maximum gain. The CH1 jack has a sensitivity of 10mV/12KΩ for LINE-level signals. The Line channel 2 has a sensitivity of 30mV/20KΩ for LINE level signals and 30mV/240KΩ for GUITAR level signals. The output level is 5.8V max for both MAIN and MONITOR outputs.

The frequency range for the device is 20Hz-22KHz, which covers the entire audible spectrum. The total harmonic distortion (THD) is less than or equal to 0.05%, which means that the device produces a relatively clean and distortion-free sound. The signal-to-noise (S/N) ratio is 80dB (A-weighted), which indicates that the device has a good signal-to-noise ratio.

The device also includes an equalizer with a bass range of ±15dB at 80Hz and a high range of ±15dB at 12KHz. The headphone impedance is greater than or equal to 16Ω, which means that the device can drive headphones with higher impedance values.

The device has a USB interface that is USB1.1 compatible and supports 16-Bit Delta-Sigma, 44.1KHz sampling rates, and a maximum sampling rate of 48KHz. The device also supports phantom power at +48V, which is necessary for powering certain types of microphones.

The power supply for the device can come from the USB port of a computer or a power supply unit that is provided and connected to AC 100-240V 50/60Hz. The dimensions of the device are 100x45x135mm, and it weighs 430g. Finally, the device is suitable for data transfer via USB interface with Windows 2000, XP or higher, and Mac OS 9.0.4 or higher, 10. X or higher.

Dimensions: 100x45x135mm
