- 3 Channel Mic-Line Mixer-USB Audio Interface
- Sensitivity / ImpedanceMic: 1mV/1.7KΩ (Gain max)Line, channel 1: 3mV/12KΩ (Gain max)Line, channel 2/3: 200mV/22KΩTape in: 300mV/22KΩ
- Output level: 5.8V max (MAIN; MONITOR; TAPE)• Frequency range: 20Hz-2500Hz
- THD: ≤0.05%• S/N ratio: 81dB (A weighted)
- Equalizer: Bass range: ±15dB/80Hz; High range: ±15dB/12KHz
- Headphone impedance: ≥16Ω
- USB interface: USB1.1 compatible, USB 2.0 Full speed16-Bit Delta-Sigma, 44.1kHz Sampling rates; 48kHz max
- Phantom power for XLR jack: +18V• Power Supply: Via USB port (5V/500mA) of the computer or via power supply unit provided and connected to AC 100-240V 50/60Hz
- Dimensions: 100x45x135mm
- Weight: 430g• Suitable operating system for data transfer via USB interface: Windows 2000, XP or higher; Mac OS 9.0.4 or higher, 10.X or higher
top of page
SAVE, SAVE, SAVE!!! DON'T MISS OUT ON OUR ELECTRO DEALS. SAVE NOW >

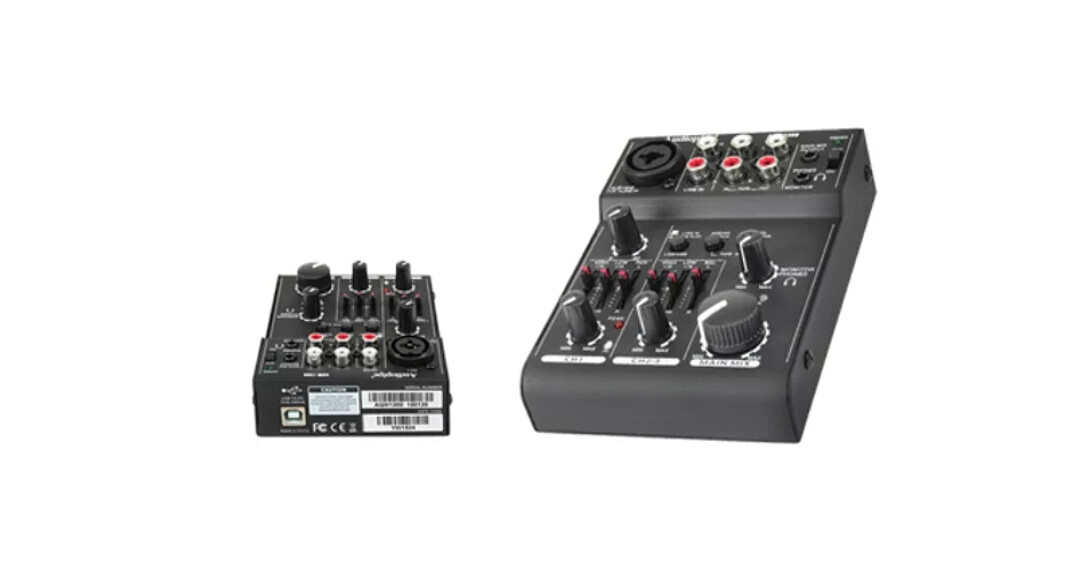

Audiopipe | AQM-1300BT 3-Channel Mic-Line Mixer-USB Audio Interface
