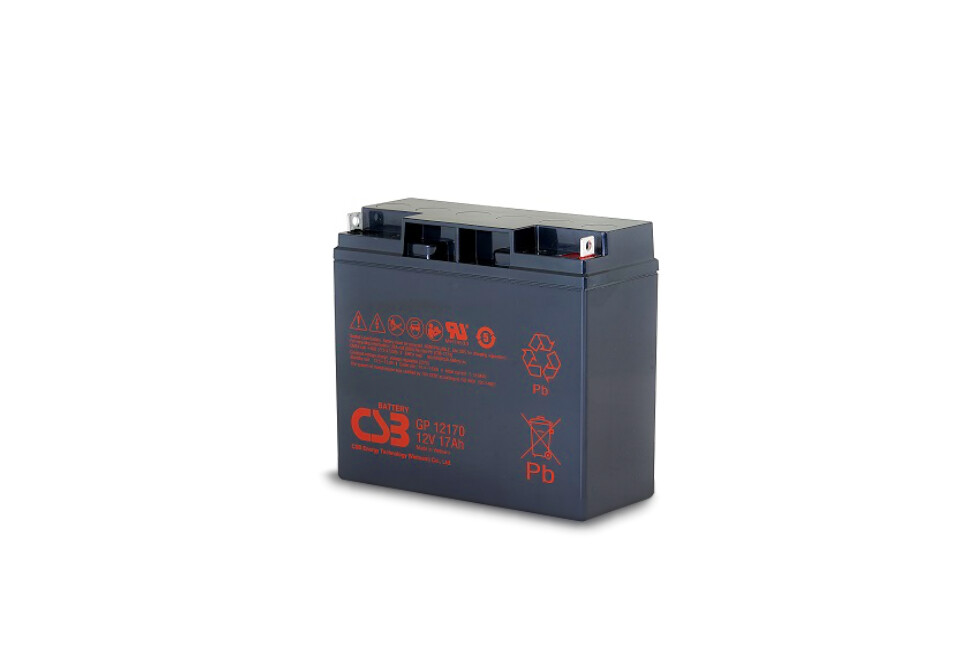

CSB | 12 Volts 17.0 Amp Sealed Lead Acid Battery

SKU 10024

$14,950.00

Buy In-Store Only

In stock

Product Details

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

Cells Per Unit

6

Voltage Per Unit

12 V

Capacity

17 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

Weight

Approx. 5.5 kg. (12.12 lbs.)

Maximum Discharge current

230 A (5sec.)

Internal Resistance

Approx. 14.0 mΩ

Operating Temperature Range

Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)

Nominal Operating Temperature Range

25°C ± 3°C (77°F ± 5°F)

Float charging voltage

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

Recommended Maximum Charging current limit

5.1A

Equalization and Cycle Service

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

Self Discharge

It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

Terminal

B1/B3-L terminal to accept M5 nut & bolt

Container Material

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
