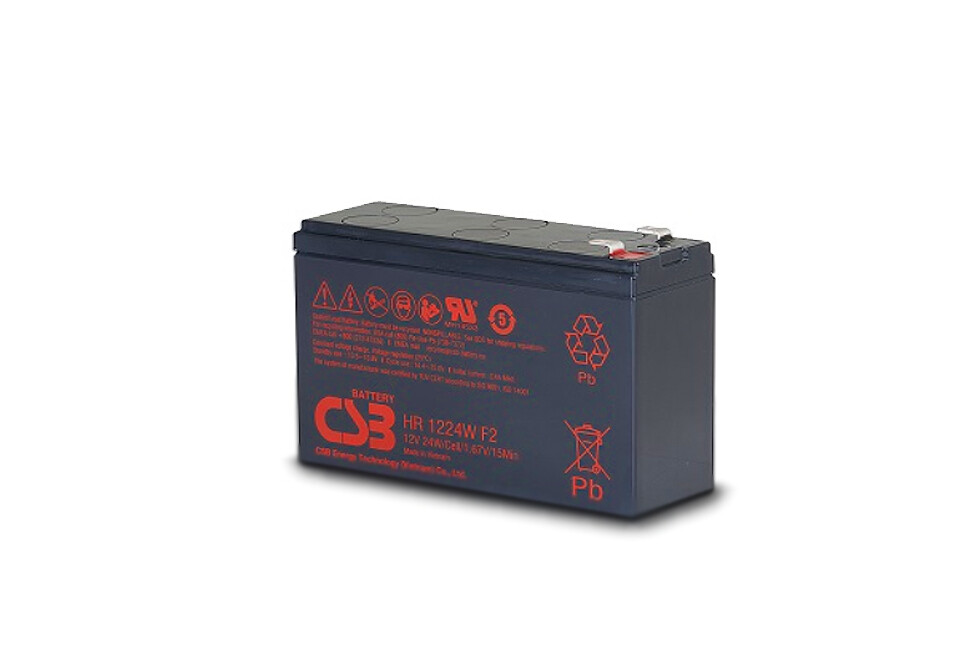

CSB | 12 Volts 24 Watts Sealed Lead Acid Battery

SKU 10025

$5,520.00

Out of stock

In stock

Product Details

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

12V 24.0w/cell

HR1224W is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used up to 5 years in standby.

Cells Per Unit

6

Voltage Per Unit

12 V

Capacity

24W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)

Weight

Approx. 1.95kg. (4.30 lbs.)

Maximum Discharge current

100/130A (5sec.)

Internal Resistance

Approx. 20.6mΩ

Operating Temperature Range

Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)

Nominal Operating Temperature Range

25°C ± 3°C (77°F ± 5°F)

Float charging voltage

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

Recommended Maximum Charging current limit

2.4A

Equalization and Cycle Service

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

Self Discharge

It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

Terminal

F1/F2-Faston Tab187/250

Container Material

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
