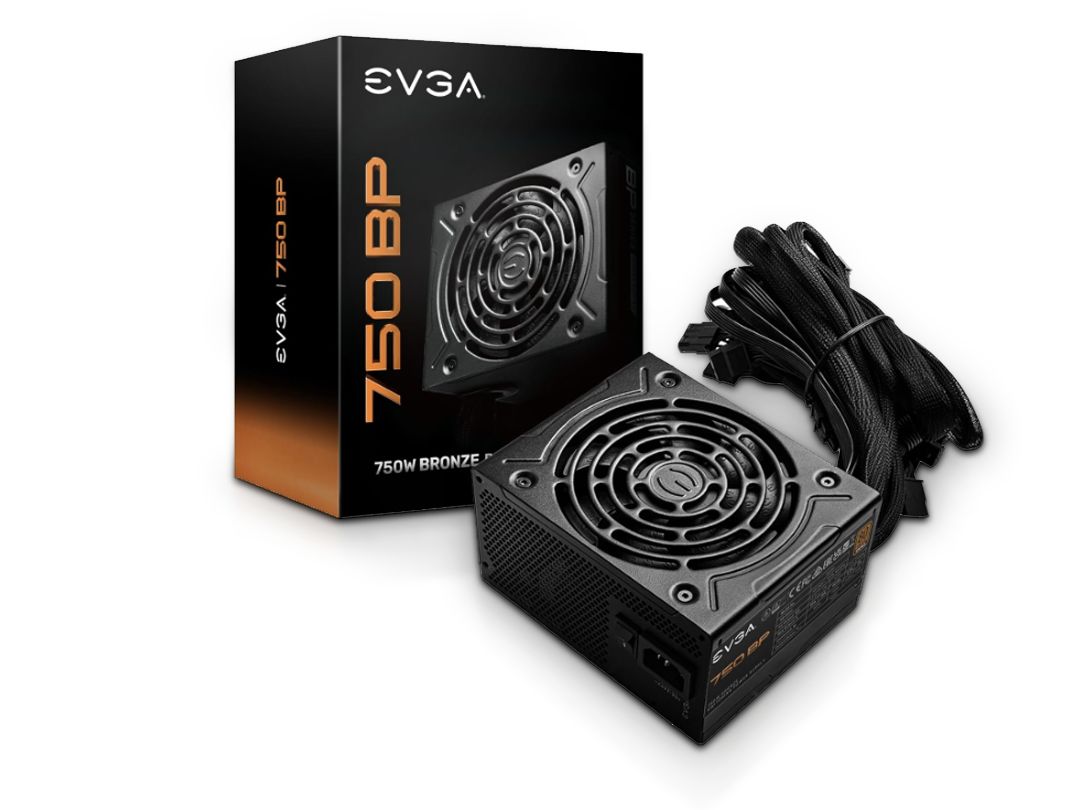

EVGA | 750 Watts 80 Plus Bronze Power Supply P/N: 110-BP-0750-K1

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

Experience exceptional efficiency with the 80 PLUS Bronze certified power supply, boasting a minimum of 85% efficiency under typical loads. Active Power Factor Correction ensures optimal performance, while the DC-DC converter enhances stability for the 3.3V and 5V outputs.

Versatile Connectivity Options

Designed for flexibility, a range of cables are included:

• ATX Cable: 1x 550mm
• EPS Cable: 1x 600mm
• PCIe Cables: 2x (550mm, 670mm)
• SATA Cables: 3x (450mm, 570mm, 690mm)
• Four-Pin Peripheral Cable: 1x (450mm, 570mm, 690mm, plus 810mm for floppy)
• AC Power Cable: 1x 1200mm

Comprehensive Power Specifications

Operating on an AC input of 100-240V and featuring robust power rails:

• +3.3V: 20A (120W)
• +5V: 20A (120W)
• +12V: 62.5A (750W)
• +5Vsb: 3A (15W)
• -12V: 0.3A (3.6W)
• Total Output: 750W

Built for Longevity and Safety

Operating efficiently within a temperature range of 0° to 30° C, this power supply utilises heavy-duty protections, including:

• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OCP (Over Current Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)
• OTP (Over Temperature Protection)

Specifications

• Dimensions: 86mm (H) x 150mm (W) x 120mm (L)
• Net Weight: 5.50 lbs
• Fan Size: 115mm with Hydraulic Bearing
• Certifications: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
• Compliance: ErP Lot 3 2014 Requirement

Depend on a power supply that combines efficiency, reliability, and extensive protections to keep your system running smoothly.
