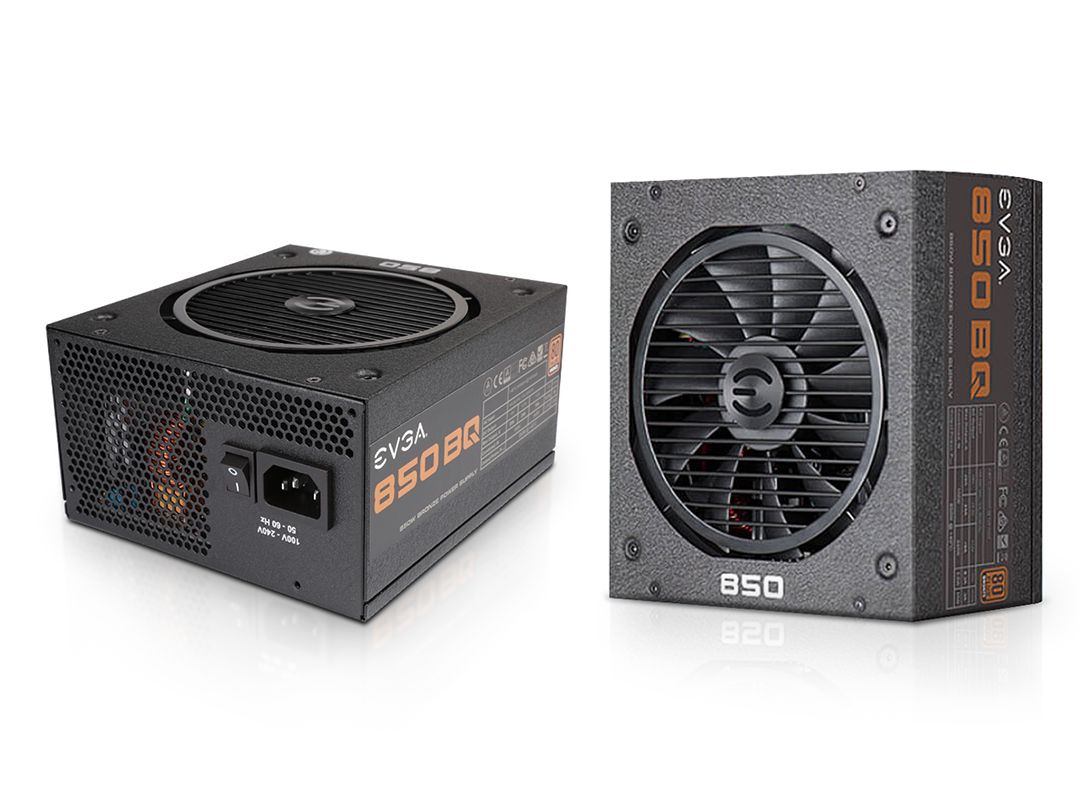

EVGA | 850 Watts 80 Plus Bronze Semi Modular Power Supply P/N: 110-BQ-0850-V1

Comprehensive Connectivity

With a variety of cables included, connectivity options are abundant:

• ATX Cable: 1x 550mm
• EPS Cables: 2x 600mm
• PCIe Cables: 3x (550mm, 700mm)
• SATA Cables: Multiple lengths (500mm, 650mm, 800mm, 950mm)
• Four-Pin Peripheral Cables: Includes lengths from 550mm to 1000mm (floppy)
• Floppy Adapter: 1x
• AC Power Cable: 1x 1800mm

Impressive Power Specifications

The power supply operates on an AC input range of 100-240 VAC and features robust power rails:

• +5V: 20A
• +3.3V: 24A
• +12V: 70A
• +5Vsb: 3A
• -12V: 0.3A
• Total Output: 850W

Designed for Longevity and Safety

Engineered with Japanese capacitors, the main PCB ensures durability and efficiency. The operating temperature range of 0° to 40° C and an impressive MTBF of 100,000 hours signify a long-lasting product.

Heavy-duty protections include:

• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OCP (Over Current Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)

Specifications

• Dimensions: 85mm (H) x 150mm (W) x 165mm (L)
• Net Weight: 7.03 lbs
• Fan Size: 140mm with Teflon Nano-Steel Bearing
• Certifications: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
• Compliance: ErP Lot 6 2013 Requirement

Equip your system with the EVGA 850 BQ for dependable power and peace of mind, knowing your components are safeguarded and supported by a robust power supply.
