Sennheiser | XS Wireless 1 UHF Microphone

Tax included! This product can't be ordered online at this time. This product can only be purchased in-store.

Description

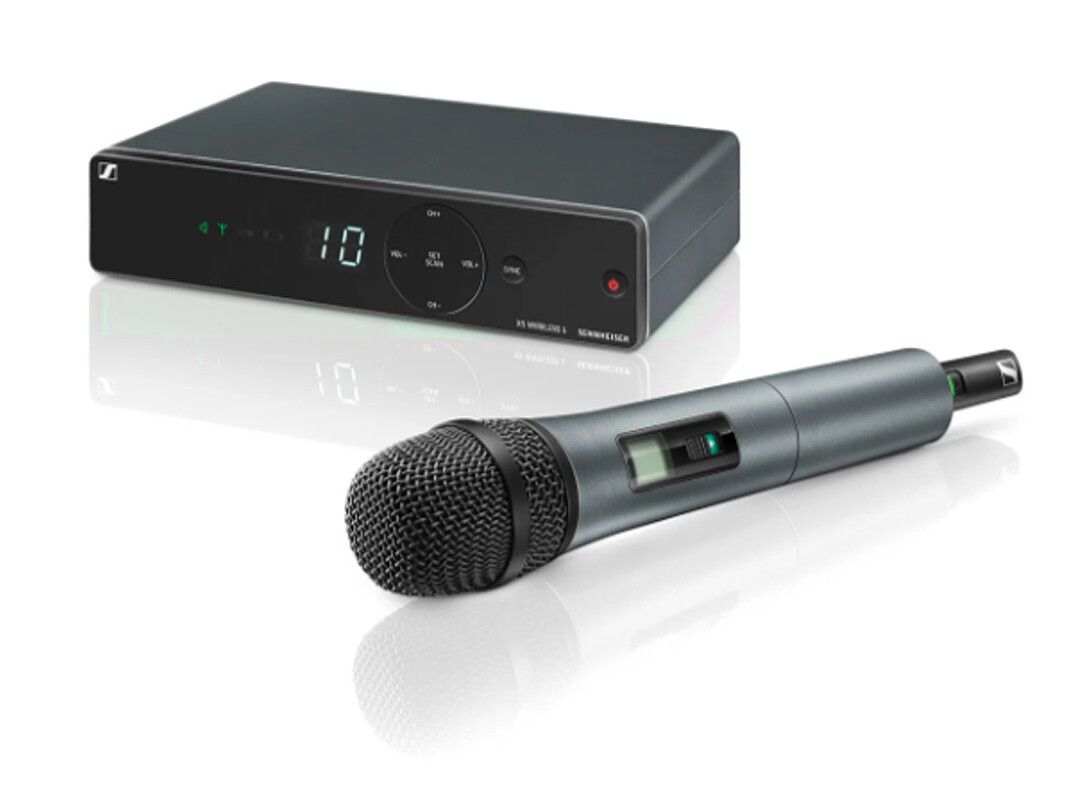

Raise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

Dimensions
approx. 200 x 42 x 127 mm

THD, total harmonic distortion
≤ 0.9%

Pick-up pattern
cardioid

Signal-to-noise ratio
≥ 103 dBA

RF output power
10 mW

Switching bandwidth
up to 24 MHz

Operating time
approx. 10 hrs

Modulation
wideband FM

Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Housing
rugged ABS housing

Dynamic range
dynamic

Frequency
8 frequency banks, each with up to 10 factory-preset channels

Frequency range
A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz

Sensitivity
< 3 μV at 52 dB(A)rms S/N

Squelch
adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)

Input sensitivity
1.5 mV / Pa

Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps

Audio adjustment range
45 dB, adjustable in 5-dB steps

Line / Mic level
20 dB, switchable

Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C

Receiver Principle
double superheterodyne

Diversity principle
Antenna switching diversity via internal antennas
